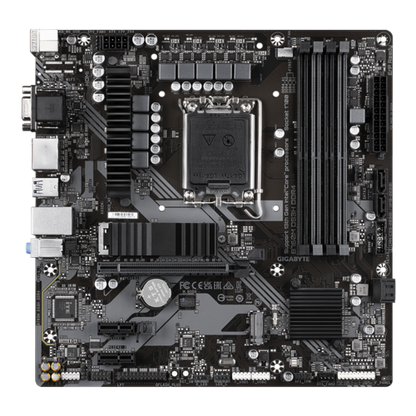

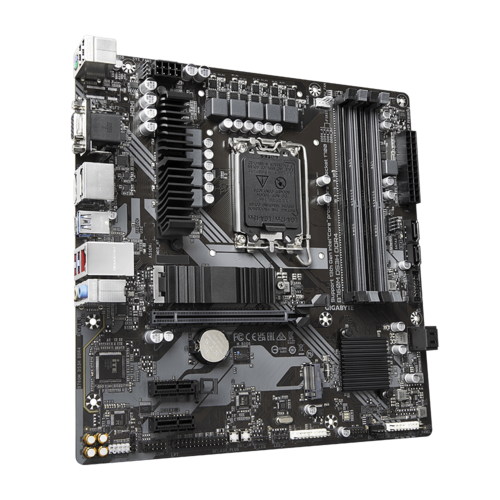

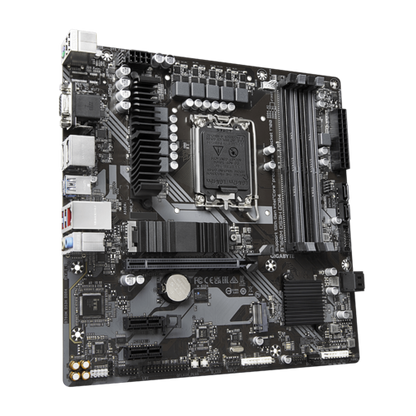

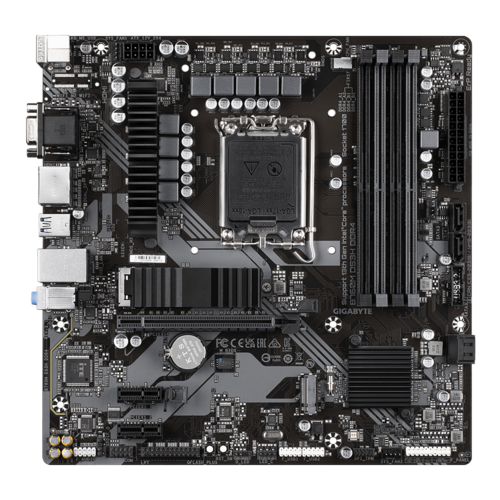

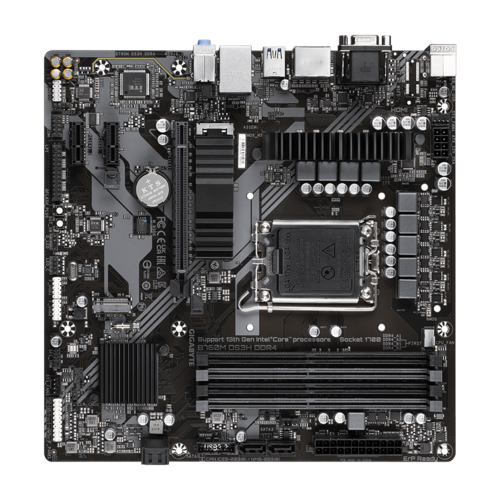

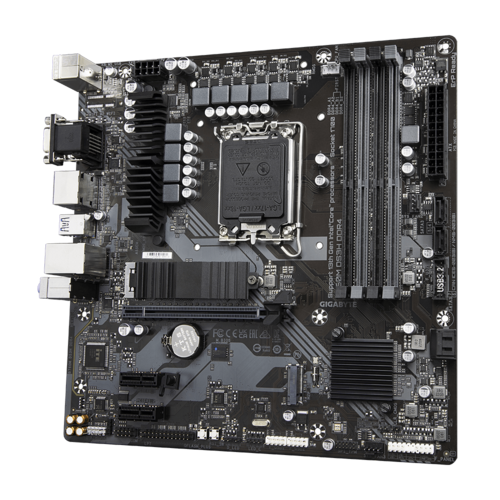

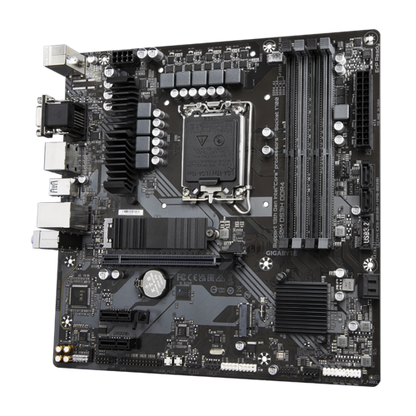

Gigabyte - B760MDS3H INTEL

Key Features

🔹 CPU Compatibility
Supports Intel® Core™ 14th, 13th, and 12th Gen Processors for cutting-edge computing performance.

🔹 Unparalleled Power Delivery
Advanced Hybrid 6+2+1 Phases Digital VRM Solution ensures stable and efficient power for all workloads.

🔹 High-Speed Memory Support
Dual Channel DDR4 with 4×DIMM Slots and XMP memory module support for enhanced speed and performance.

🔹 Next-Gen Storage
Equipped with 2×PCIe 4.0 x4 M.2 Connectors for ultra-fast SSD performance and reduced load times.

🔹 M.2 Thermal Guard
Integrated heat protection ensures consistent M.2 SSD performance and reliability.

🔹 EZ-Latch Design
PCIe 4.0 x16 Slot with a Quick Release Mechanism for hassle-free GPU installation or upgrade.

🔹 Blazing-Fast Networking
Built-in 2.5GbE LAN provides superior wired connectivity and low-latency networking.

🔹 Extended Connectivity Options
Comprehensive I/O including Rear USB-C® 10Gb/s, DisplayPort, and HDMI for versatile display and peripheral support.

🔹 Smart Fan 6 Technology
Advanced cooling with multiple temperature sensors and hybrid fan headers featuring FAN STOP for silent efficiency.

🔹 Q-Flash Plus
Easily update your BIOS without installing a CPU, memory, or GPU—ideal for hassle-free setup or recovery.

⭐ Motherboard Specifications Overview

🔧 CPU Support

• Socket: LGA1700

• Compatible Processors: Intel® Core™ (14th, 13th, 12th Gen), Pentium® Gold, Celeron®

• L3 Cache: Varies by CPU

Refer to the official "CPU Support List" for detailed compatibility.

🧠 Chipset

• Intel® B760 Express Chipset

🧬 Memory

• Memory Type: DDR4

• Speeds Supported (MT/s):

  • Up to 5333(O.C.), with extensive overclocking support

  • Down to 2133

• Slots: 4×DDR4 DIMM (up to 128 GB total, 32 GB per slot)

• Architecture: Dual Channel

• Module Support:

  • ECC (non-ECC mode), Non-ECC Unbuffered

  • XMP (Extreme Memory Profile)

Refer to the "Memory Support List" for full compatibility.

🖥️ Integrated Graphics

• Intel® HD Graphics (depends on CPU)

• Display Outputs:

  • 1×D-Sub (1920×1200 @ 60Hz)

  • 1×HDMI 2.1 (4096×2160 @ 60Hz, HDCP 2.3)

  • 2×DisplayPort 1.2 (4096×2304 @ 60Hz, HDCP 2.3)

• Multi-Display: Supports up to 4 displays

🎧 Audio

• Codec: Realtek® High Definition Audio

• Channels: 2/4/5.1/7.1 (configurable via software)

• S/PDIF Out: Supported

🌐 Networking

• LAN: Realtek® 2.5GbE (2.5G/1G/100Mbps)

⚙️ Expansion Slots

• 1×PCIe 4.0 x16 (CPU, for GPU or NVMe SSD)

• 2×PCIe 3.0 x1 (Chipset)

💾 Storage Interfaces

• M.2 Slots:

  • 1×PCIe 4.0 x4/x2 (CPU)

  • 1×PCIe 4.0 x4/x2 (Chipset)

• SATA: 4×SATA 6Gb/s

• RAID: 0/1/5/10 support

🔌 USB Ports

• Rear I/O:

  • 1×USB Type-C® (USB 3.2 Gen 2)

  • 3×USB 3.2 Gen 1

  • 2×USB 2.0

• Internal Headers:

  • 2×USB 3.2 Gen 1

  • 4×USB 2.0

💡 Internal Connectors

• 1×24-pin ATX, 1×8-pin ATX 12V

• 1×CPU fan, 3×System fan headers

• 2×M.2, 4×SATA ports

• RGB & ARGB headers

• TPM, SPDIF, Serial, Parallel headers

• Q-Flash Plus, Reset & Clear CMOS jumpers

🔁 Back Panel I/O

• 2×USB 2.0, 1×PS/2 combo port

• 1×D-Sub, 1×HDMI, 2×DisplayPorts

• 3×USB 3.2 Gen 1

• 1×USB-C® (USB 3.2 Gen 2)

• 1×RJ-45 (LAN), 3×Audio jacks

🔍 Monitoring & BIOS

• Sensors: Voltage, Temperature, Fan Speed, Water Flow

• Fan Control: Smart Fan 6, FAN STOP

• BIOS: AMI UEFI, 128 Mbit Flash, Q-Flash & Q-Flash Plus

🌟 Unique Features

• GIGABYTE Control Center (GCC)

• Norton® Internet Security OEM

• LAN bandwidth management software

💽 Operating System

• Supported OS: Windows 11/10 (64-bit)

📐 Form Factor

• Micro ATX (24.4 cm × 24.4 cm)
