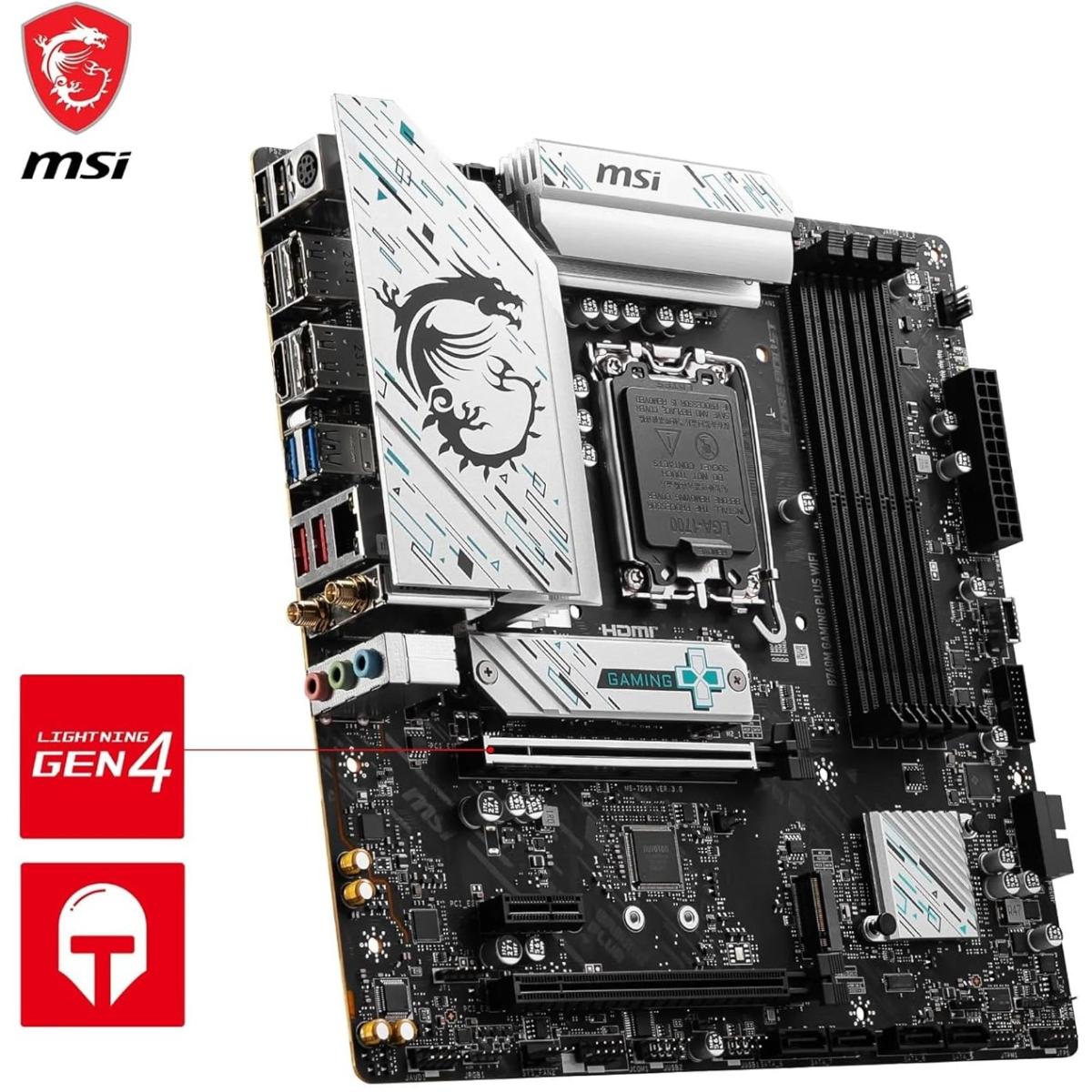

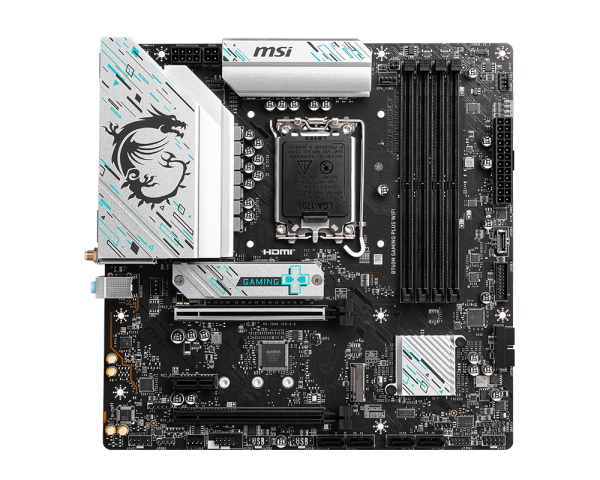

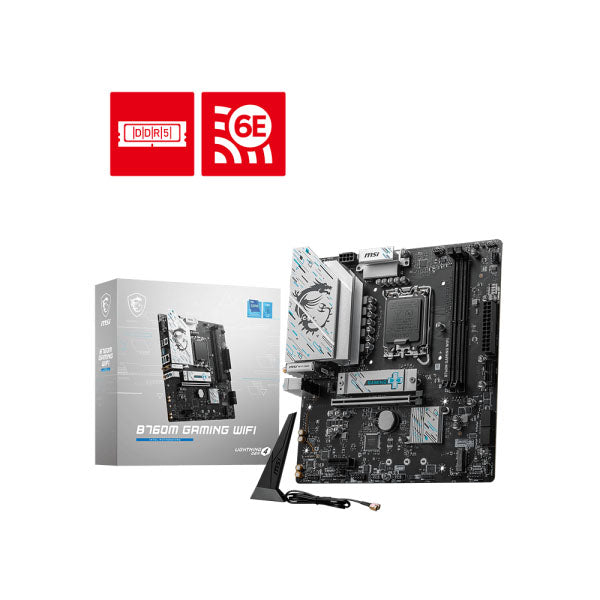

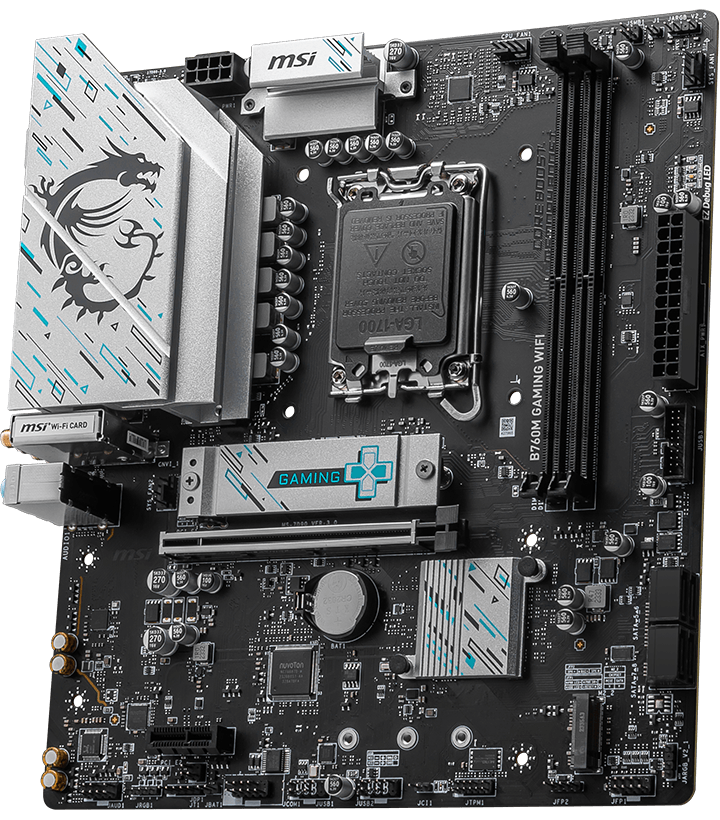

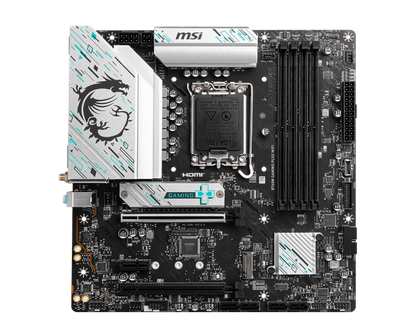

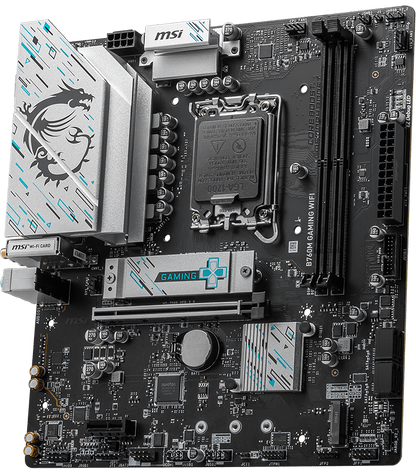

MSI B760M Gaming Wifi DDR5 Motherboard INTEL
MSI B760M Gaming Wifi DDR5 Motherboard INTEL
Regular price
Rs. 12,025.00
Regular price
Rs. 30,000.00
Sale price
Rs. 12,025.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
| Chipset | INTEL B760 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700 |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB |
| Memory Support | DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Max. Overclocking Frequency | 1DPC 1R Max speed up to 8000+ MHz, 1DPC 2R Max speed up to 6400+ MHz |
| Supports | Intel® XMP 3.0 OC, Dual-Controller Dual-Channel mode, non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ (Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*), 1x DisplayPort (Support DP 1.4, maximum resolution of 4K 60Hz*), 1x VGA (Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*) |
| Slot | 1x PCI-E x16 slot, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to (From CPU), PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output |
| Storage | 2x M.2 (M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices), 4x SATA 6G (* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 4x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front) |
| LAN | Realtek® RTL8125B 2.5Gbps LAN |
| Wireless LAN & Bluetooth | Intel® Wi-Fi 6E (The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA) |
| Internal IO | 1x Power Connector (ATX_PWR), 1x Power Connector (CPU_PWR), 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector (JRGB), 1x TPM pin header (Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports |
| LED Feature | 4x EZ Debug LED |
