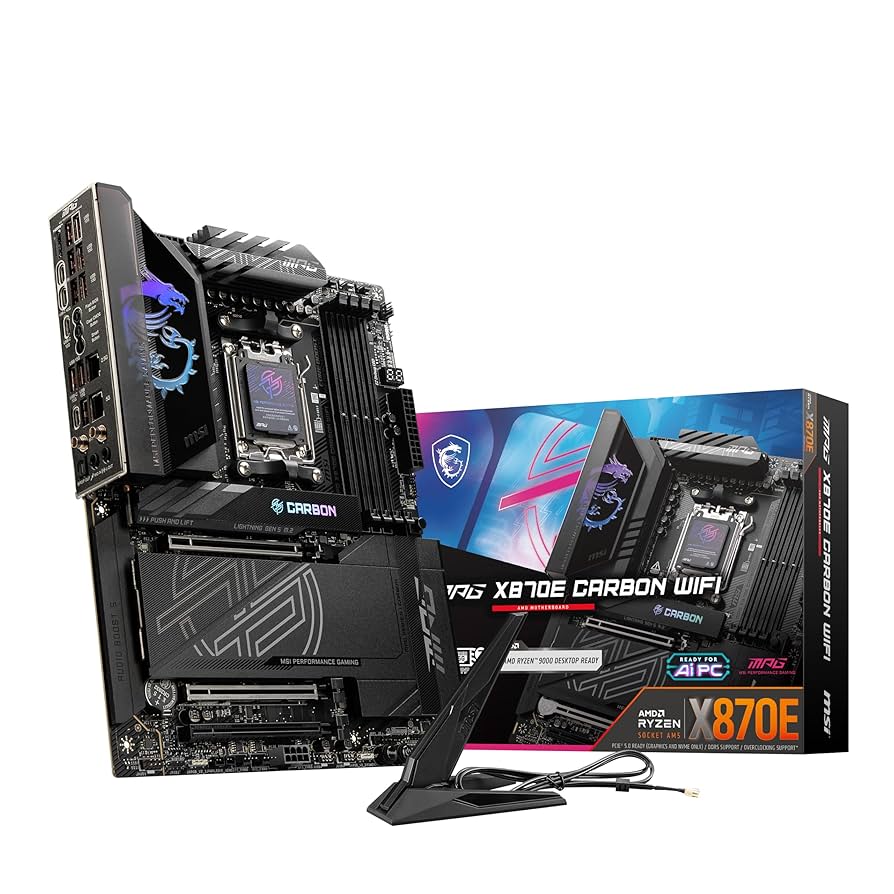

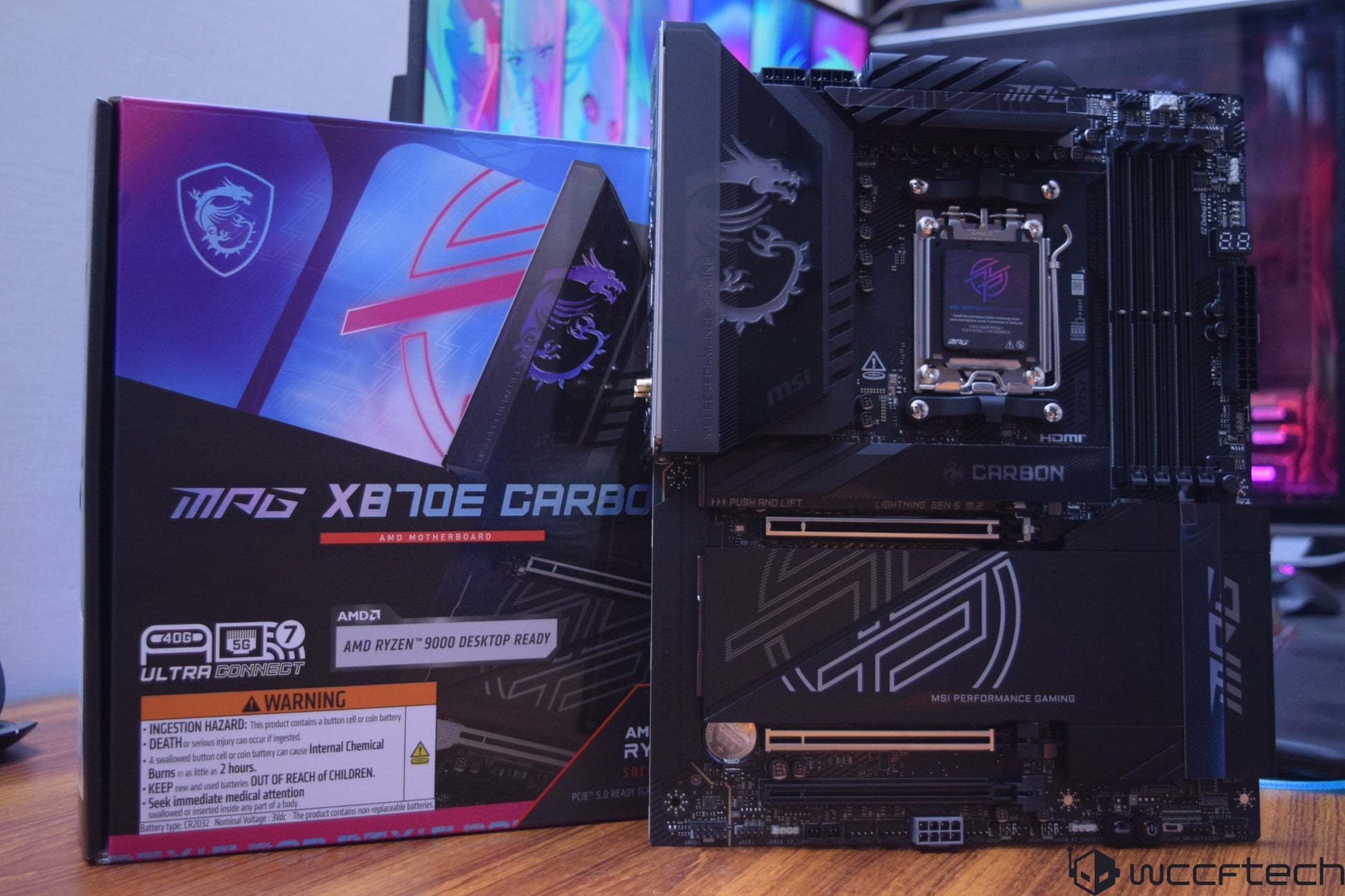

MSI MPG X870E Carbon WIFI Motherboard AMD

• 4x DDR5 UDIMM, Maximum
• Memory Capacity 256GB
  Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
  Ryzen 9000 Series Processors max. overclocking frequency:
  • 1DPC 1R Max speed up to 8400+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 4800+ MT/s
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPOTM
• Supports Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM, Clock Driver bypass mode only
• CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
  • The DIMM slots on this motherboard have double-sided latches.
  • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

• 1x HDMI
• Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz
• 2x Type-C DisplayPort
  USB4® port, supporting DisplayPort 1.4 with HBR3 over
• USB Type-C, maximum resolution of 4K@60Hz
• Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• 3x PCI-E x16 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 & PCI_E2 slots
• Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8/x0 (For Ryzen 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4/x0 (For Ryzen 8500/ 8300 Series processor)
PCI_E3 slot
• Supports up to PCIe 4.0 x4

• PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.

• Realtek ALC4080 Codec
• 7.1-Channel USB High-Performance Audio
• Supports up to 32-Bit/384 kHz playback on front panel
• Supports S/PDIF output

• 4x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  4x SATA 6G
• PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.

• Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
• Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices
• RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen™ 9000/7000 series CPU.

• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Front)
• 9x USB 10Gbps Type A (Rear)
• 2x USB 10Gbps Type C (Rear)
• 1x USB 20Gbps Type C (Front)
• 2x USB 40Gbps Type C (Rear)

• 1x Realtek 8126 5G LAN
• 1x Realtek 8125 2.5G LAN

• 1x Power Connector(ATX_PWR)

• 2x Power Connector(CPU_PWR)

• 1x Power Connector(PCIE_PWR 8pin)

• 1x CPU Fan

• 1x Combo Fan (Pump_Sys Fan)

• 5x System Fan

• 1x EZ Conn-header (JAF_2)

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x Thermal Sensor connectors(T_SEN)

• 3x Addressable V2 RGB LED connector (JARGB_V2)

• 1x RGB LED connector(JRGB)

• 4x USB 2.0 ports

• 4x USB 5Gbps Type A ports

• 1x USB 20Gbps Type C ports

• Wi-Fi 7 Solution
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4**, MLO, 4KQAM
• 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
• The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

• 4x EZ Debug LED
• 1x EZ Digit Debug LED
• 1x EZ LED Control switch

• USB 10Gbps Type-A
• lash BIOS Button
• Clear CMOS Button
• Smart Button
• 2.5G LAN
• 5G LAN
• Audio Connectors
• HDMI
• USB 40Gbps Type-C
• USB 10Gbps Type-C
• USB 10Gbps Type-A
• USB 10Gbps Type-C
• Wi-Fi / Bluetooth
• Optical S/PDIF Out

• Eurapeon Union Regulatory Notice
• Quick installatgion Guide
• Cable sticker
• Shout Out Flyer
• EZ Wi-Fi Antenna
• EZ M.2 Clip ll
• EZ M.2 Clip ll Remover
• 1 to EZ Conn-Cable(V2)
• USB Drive
• 2 x Sata Cables
• ARGB Extension cable
• 1 x 2 RGB Extension Cable
• EZ Front panal cable
