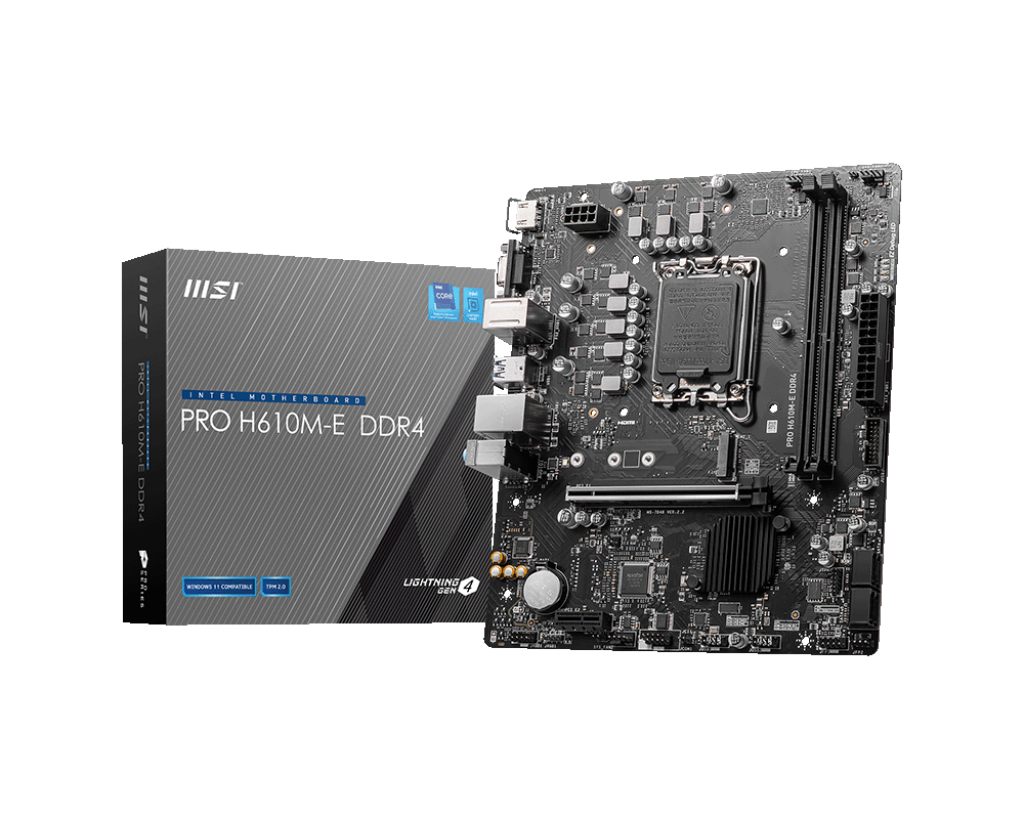

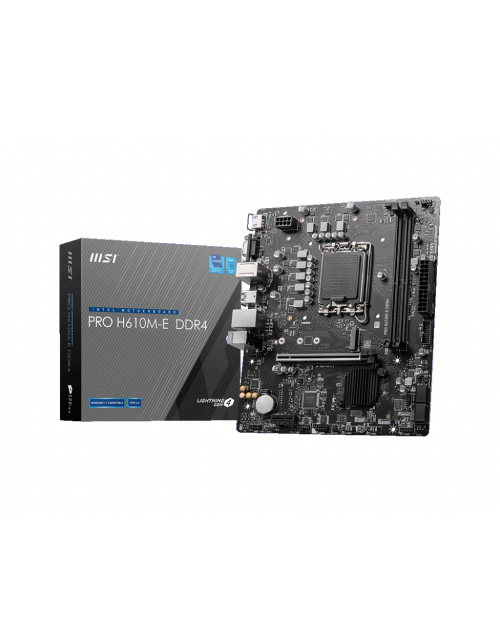

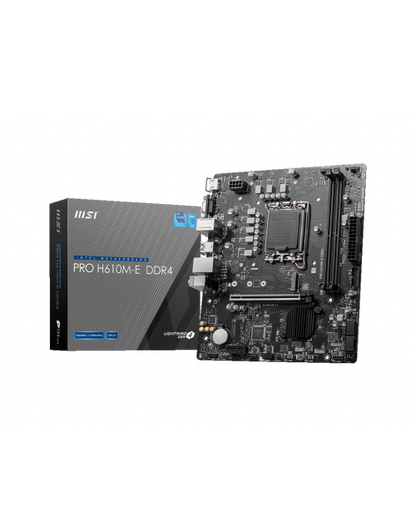

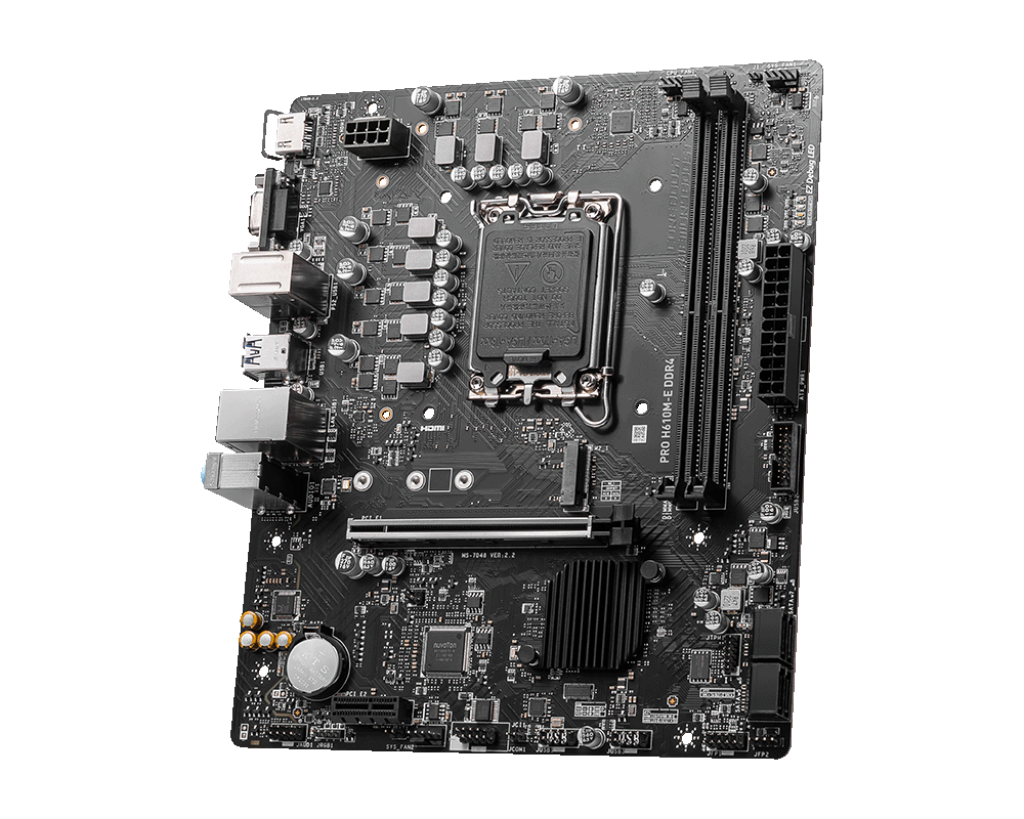

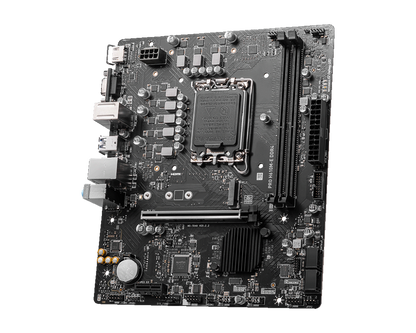

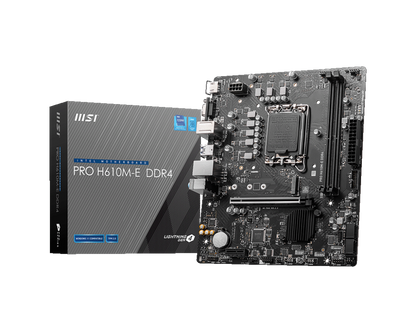

MSI Pro H610M-E DDR4 Motherboard INTEL

MSI Pro H610M-E DDR4 Motherboard INTEL

Rs. 5,900.00
Rs. 20,000.00 Rs. 5,900.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Features:

  • Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 3200(MAX) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
    Lightning Fast Experience: PCIe 4.0
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Specifications:

Model PRO H610M-E DDR4
Processor

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Processor socket LGA1700

Please go to www.msi.com to get the newest support status as new processors are released.
Chipset Intel H610 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB
  • Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
Expansion Slot
  • 1x PCIe x16 slot (From CPU)
    Supports up to PCIe 4.0 x16
  • 1x PCIe x1 slot (From H610 chipset)
    Supports PCIe 3.0 x1
Onboard Graphics
  • 1x HDMI 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz
  • 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
  • Available only on processors featuring integrated graphics.
  • Graphics specifications may vary depending on the CPU installed.
SATA Ports 4x SATA 6Gb/s ports (From H610 chipset)
M.2 SSD Slot

1x M.2 slot (Key M) (from H610 chipset)

  • Supports up to PCIe 3.0 x4
  • Supports up to SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
Audio

Realtek ALC897 Codec

7.1-Channel High Definition Audio
LAN 1x Realtek RTL8111H 1Gbps LAN controller
Power Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin +12V power connector
Internal USB Connectors
  • 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
    Supports additional 2 USB 3.2 Gen 1 5Gbps ports
  • 2x USB 2.0 Type-A connectors (From Hub-GL850G)
    Supports additional 4 USB 2.0 ports
Fan Connectors
  • 1x 4-pin CPU fan connector
  • 2x 4-pin system fan connectors
System Connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Serial port connector
Jumpers

1x Clear CMOS jumper
LED Features
  • 1x 4-pin RGB LED connector
  • 4x EZ Debug LED
Back panel ports
  • HDMI
  • VGA
  • Keyboard / Mouse
  • USB 3.2 Gen 1 5Gbps Type-A
  • LAN port
  • Audio connector
  • USB 2.0
Dimensions

M-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Warranty 3 Years
Note Features, Price, Specifications are subject to change without notice. Images used for representation purpose only
