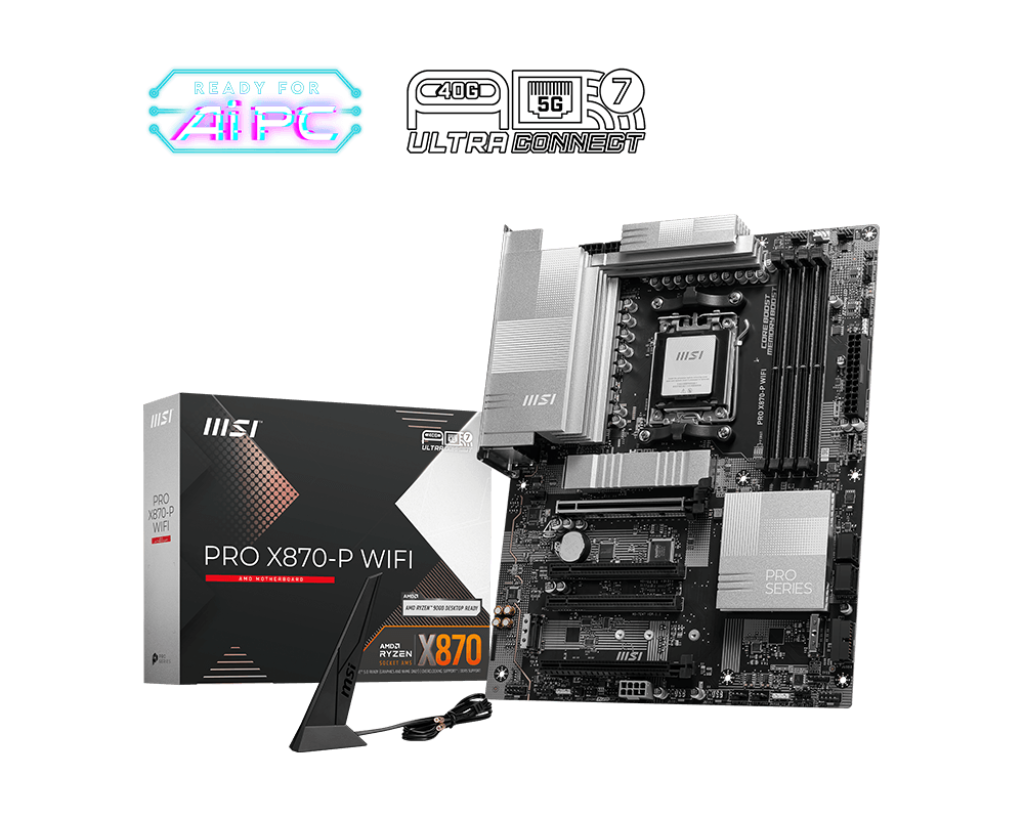

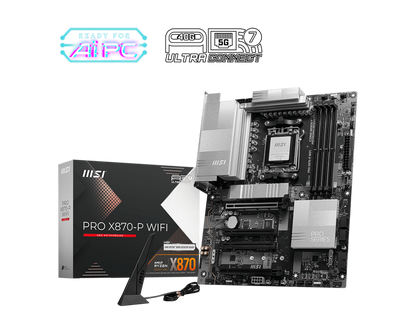

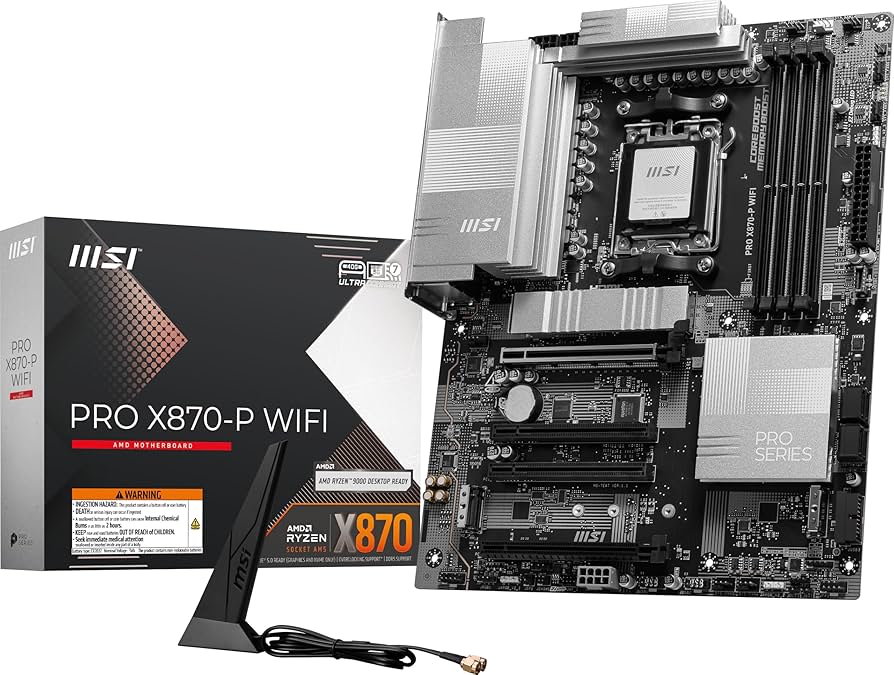

Msi Pro X870-P WiFi AM5 ATX Motherboard AMD

Msi Pro X870-P WiFi AM5 ATX Motherboard AMD

Rs. 21,689.00
Rs. 100,000.00 Rs. 21,689.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model PRO X870-P WIFI
Chipset AMD X870
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory
  • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency:
  •  1DPC 1R Max speed up to 8200+ MT/s
  •  1DPC 2R Max speed up to 6400+ MT/s
  •  2DPC 1R Max speed up to 6400+ MT/s
  •  2DPC 2R Max speed up to 4800+ MT/s
  • Supports AMD POR Speed and JEDEC Speed
  • Supports Memory Overclocking and AMD EXPOTM
  • Supports Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information
Onboard Graphics
  • 1x HDMI
  • Support HDMITM 2.1, maximum resolution of 4K 60Hz*
  • 1x Type-C DisplayPort
  • USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  • 4x PCI-E x16 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
  • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
* PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
Audio Realtek ALC897 7.1-Channel High Definition Audio
Storage
  • 3x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G
M2_1 slot
  • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 2x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Front)
  • 1x USB 20Gbps Type C (Rear)
  • 1x USB 40Gbps Type C (Rear)
LAN Realtek 8126VB 5G LAN
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x Power Connector(PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x Combo Fan (Pump_Sys Fan)
  • 6x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
  • Wi-Fi 7
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED

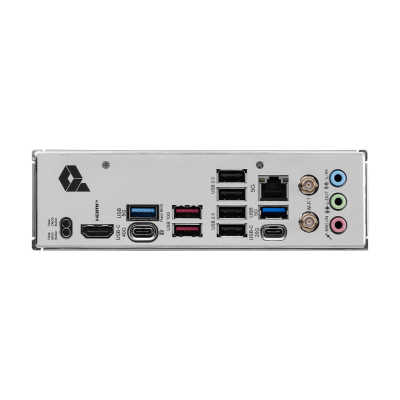

BACK PANEL PORTS
  • Clear CMOS Button
  • USB 5Gbps Type-A
  • USB 2.0
  • 5G LAN
  • Wi-Fi / Bluetooth
  • Audio connectors
  • Flash BIOS Button
  • HDMI™
  • USB 40Gbps Type-C
  • USB 10Gbps Type-A
  • USB 20Gbps Type-C
OPERATING SYSTEM Support for Windows® 11 64-bit
BOX CONTENT
  • Europeon Reguletary Notice
  • Quick Installation Guide
  • EZ  M.2 Clip ll Remover
  • 3x EZ M.2 Clip-ll
  • EZ Wi-Fi Antenna
  • 2xSATA Cables
  • 1to 2 EZ Conn-Cable (V1)
PCB Info
  • ATX
  • 243.84mmx304.8mm
Warranty 3 Years
Note *** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice.
