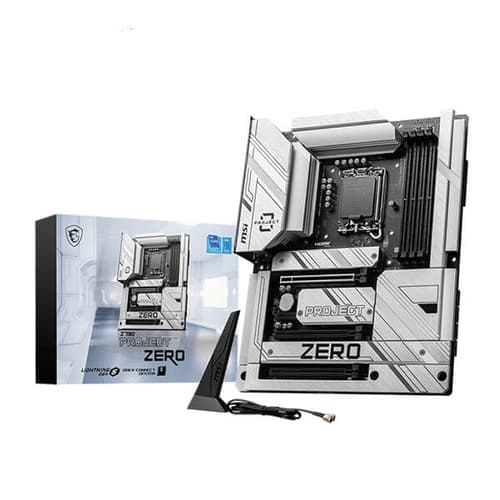

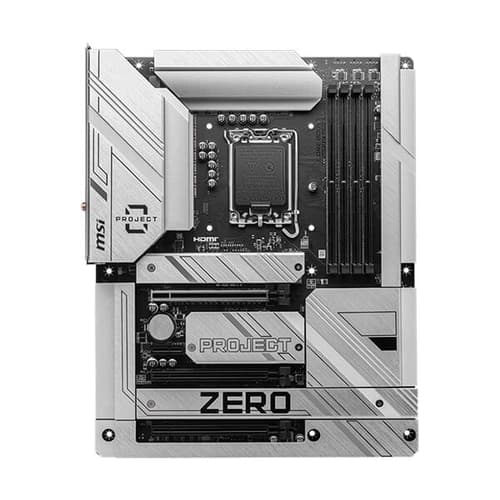

MSI Z790 Project Zero (Wi-Fi) DDR5 Motherboard INTEL

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:

• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile

• 1x HDMI™

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

• 1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• 3x PCI-E x16 slot
• 1x PCI-E x1 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 3.2 Gen1 Type A (Rear)
• 4x USB 3.2 Gen1 Type A (Front)
• 1x USB 3.2 Gen2 Type A (Rear)
• 1x USB 3.2 Gen2 Type C (Front)
• 1x USB 3.2 Gen2x2 Type C (Rear)

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 6x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x TBT connector (JTBT, supports RTD3)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 2x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 4x USB 3.2 Gen1 Type A ports
• 1x USB 3.2 Gen2 Type C ports
• 1x USB4 card connector (JTBT_U4_1, supports RTD3)

• Mouse / Keyboard
• DisplayPort 1.4
• USB 2.0
• 2.5G LAN Port
• Wi-Fi / Bluetooth Antenna
• HD Audio Connectors
• Flash Bios Button
• USB 2.0
• HDMI™ 2.1 Port
• USB 3.2 Gen 1 5Gbps Type-A
• USB 3.2 Gen 2x2 20Gbps Type-C
• USB 3.2 Gen 2 10Gbps Type-A

*** Image use for reference only

*** Features, Price, Specifications are subject to change without notice.
